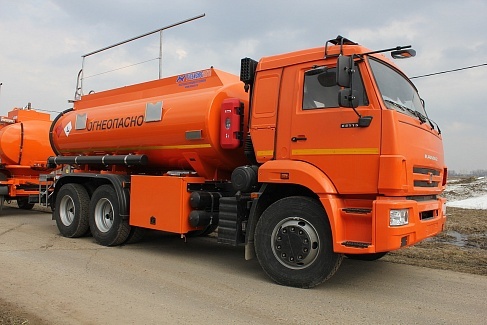

Tank Truck 465175-15 65115
Specifications
| Rated capacity, l | 15000 |
| Compartments | 3 |
| Total length, mm | 8280 |
| Height, mm | 4000 |
| Width, mm | 2550 |
| Wheel Base, mm | 3690+1320 |
| The distance between axes, mm | 1320 |
| Wheels | 385/65 R22,5; 6+1 |
| Total gross weight, kg | 22400 |
| Vertical load on the fifth wheel, kg | 5550 |
| Axle load, kg | 16850 |
| Payload, kg | 12900 |
| Curb weight, kg | 10514 |
|
More
|
|
Engineer consultation
Our engineers will help you calculate the optimal load on the road according to the RF Government Regulation No. 12 dated 01.05.2015 for your cargo and your tractor for operation without overloading and fines.
Select one of the standard configurations.
Or contact our specialists and choose your own configuration.
|
Order
Tank Truck АЦ 465175 -65115 15m3, 3 compartments
|
If you have an individual project, please, fill out the data input form and send it to us for calculation.
Download the questionnaire
