Tank Trucks

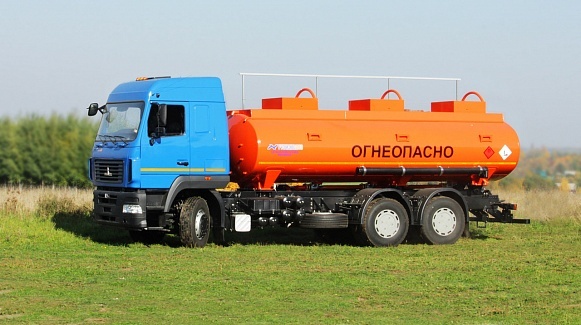

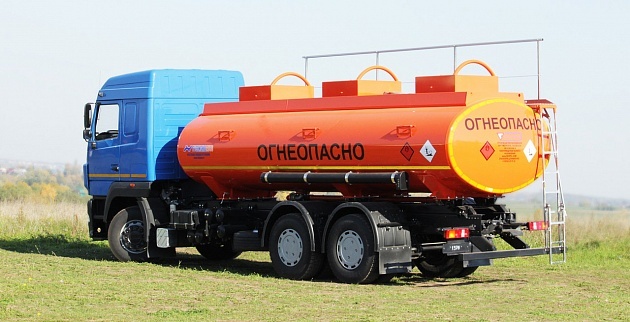

MAZ 6312В9 Tank Truck 465126

MAZ 6312В9 Tank Truck 465126 - 2 | ЗАО «Сеспель»

MAZ 6312В9 Tank Truck 465126 - 3 | ЗАО «Сеспель»

The main advantages of MAZ Tank Truck Refueller:

Payload of MAZ Tank Truck Refueller - 17,20 tons;
Capacity - 20 m3;
The tank is divided into 3 compartments which are equipped with air valves;
It is intended for transportation and storage of oil products;
Performs a function of a metered filling station;
It can work with substances with a density up to 860 kg/m3;
Withstands vapor pressure up to 110kPa;
It takes about half an hour to fill the tanker;
It also takes no more than 30 minutes to unload oil products with the help of a pump without filtration.

MAZ Tank Truck Refueller is equipped with special ladders and safety improving devices. On customer's request it can be designed with powerful pumps and filters and other components.

You can buy MAZ Tank Truck Refueller in big cities of Russia where we have our representative offices: in Moscow, Yekaterinburg, Chelyabinsk, Nizhny Novgorod, Rostov-on-Don, St. Petersburg. Please, refer to page "Contacts" for our addresses and phone numbers.

We offer to buy a tank truck at Sespel. Buying tank trucks - refuellers based on KAMAZ at our company gives you the opportunity to get European components optimal for operation in Russia. If you have a necessity you can address our service centers - professional service and maintenance are provided in many Russian big cities.

Order Lease

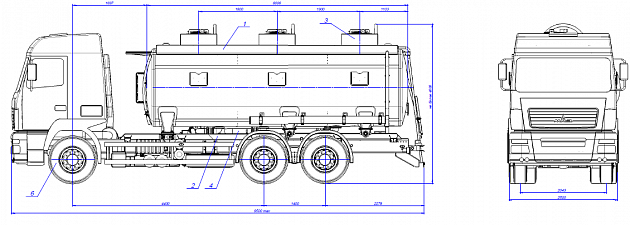

Specifications

MAZ 6312В9 Tank Truck 465126 - технические характеристики

Rated capacity, l	20000
Compartments	3 (6,5 ;7; 6,5)
Total length, mm	9600
Height, mm	4000
Width, mm	2550
Wheel Base, mm	4400+1400
The distance between axes, mm	1400
Wheels	385/65 R22,5; 6+1
Total gross weight, kg	33500
Vertical load on the fifth wheel, kg	7500
Axle load, kg	26000
Payload, kg	17200
Curb weight, kg	14000
More Vessel Chassis Equipment Unloading The oval-type tank truck structure is made of low-alloy steel. It is intended for carriage, temporary storage and pumping of light oil products with the density up to 860 kg/m3. The tank truck nominal volume (up to calibration marks in compartments, without metering compensatory volume) – 22 000 litres; number of Manholes - 3, number of isolated compartments - 3, compartment №1 volume – 6500 litres, compartment №2 volume – 7000 litres, compartment №1 volume – 6500 litres, The separate gravity discharge to the left or to the right side through Jouka Ball Vallve DN-80 (3”); Top loading through Livny Manlids; Material: steel alloy 09Г2С, walls and bottoms thickness - minimum 4,00 mm; shell thickness - minimum 4 mm, bottoms thickness (2 pcs) - minimum 4 mm, baffles (2 pcs) and bulkheads (4 pcs) thickness- minimum 4 mm, Transportation of highly flammable liquids Class 3 (fuel, diesel fuel, kerosene oil); design pressure – 0,5 bar, test pressure – 0,5 bar, working pressure – 0,0 bar Running gear - Brake system Maximum load on axle – 9.0 tons Steel chassis; Drum brakes; Level control valve; Double circuit brake system WABCO equipped with ТEBS system (2S/2M) with Roll Stability Support function. Automatic regulation of brake force and automatic brake shoes gap control; Pneumatic hand brake of two axles; One test jack for each wheel – to measure and check pressure in braking system. The pressure in the braking system is automatically adjusted according to the load; Wheels and Tyres Solid wheels, tubeless tires (6 wheels + 1 spare) - 7 pcs; Tyres 385/65 R22,5 - 7 pcs; Steel wheel disks 11,75x22,5 - 7 pcs; Individual PVC fenders with brackets and mudguard - 6 pcs; Tank equipment Kingpin 2'' in diameter of international type of BPW brand with steel support plate; BPW support legs with double speed, 24 (50) tons load capacity, hand-driven; It is structurally possible to seal each compartment manholes; Manholes safety fencing all along the tank; Ecological anti spill and draining equipment, 2 outlets at the rear side of the tank – draining system passing through it; Aluminium manlid DN500 - each compartment, manhole diameter - 300 mm., fixation - bolts around manlid; Foot Valve 4” with pneumatic control in each compartment; Foot valves control module with compartment numbers and switch positions marking open/closed for each compartment – 1 pce; Vent Valves with flame arrester in each compartment manlid; Composite discharge hoses L = 4,0м., DN-80 (3”) - 2 pcs.; PVC hoses carriers - 2 pcs.; Quick connectors Сamloсk 3” on discharge hoses; Rear protection according to GOST R 50913-96 requirements; Other equipment Fire extinguisher of 6 kg capacity with plastic box - 2 pcs.; Wheel blocks with brackets -2 pcs.; Box for nuetralizing agent (sand) -1 pce; Spare wheel carrier (mounting bracket); 15 meters grounding cable with reel and clip; 2 (two) copper earthing rods. The discharging equipment is situated in the closed access box on the vessel left side between supporting legs and the front axle of the carriage; Aluminium pipelines 4” for bottom loading and unloading - 3pcs; Ball Valves with manual control DN80 (3”) Civacon on discharge pipelines - 3pcs (in case of top loading); Ground cable (reel with cable); Air preparation unit for foot valves drive ; Fuel type indicator on discharge pipelines – 3 pcs; Discharge opportunities: discharging under gravity, pump unloading;

Engineer consultation

Our engineers will help you calculate the optimal load on the road according to the RF Government Regulation No. 12 dated 01.05.2015 for your cargo and your tractor for operation without overloading and fines.

Select one of the standard configurations.

Or contact our specialists and choose your own configuration.

MAZ 6312В9 Tank Truck 465126

Order

If you have an individual project, please, fill out the data input form and send it to us for calculation.
