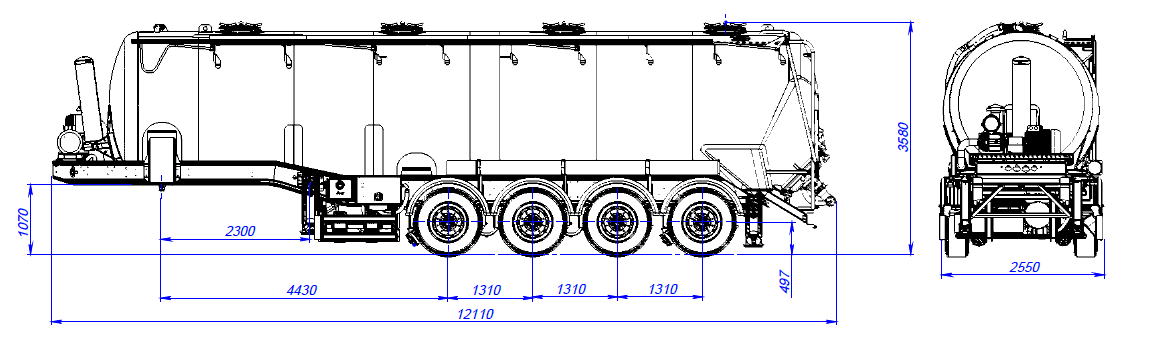

4-axle aluminum semitrailer for bulk cargo transportation SB4U45.1A_02

  • Specifications

4-axle aluminum semitrailer for bulk cargo transportation SB4U45.1A_02 - технические характеристики
Model SB4U45.1A_02
Rated capacity, l 45000
Total length, mm 12110
Height, mm 3600
Width, mm 2550
Wheel Base, mm 4430+1310+1310+1310
The distance between axes, mm 1310
Wheels 385/65R22,5; 8+1
Total gross weight, kg 34530
Vertical load on the fifth wheel, kg 8600
Axle load, kg 25930
Payload, kg 26730
Axle configuration of the tractor 4x2
Number of compartments 1
Curb weight, kg 7800
Axles BPW
Fifth wheel height, mm 1150
Material Aluminum
Access box position On the rear side
Mounting area for compressor Yes
Discharge assembly On the rear side
More

Engineer consultation

Our engineers will help you calculate the optimal load on the road according to the RF Government Regulation No. 12 dated 01.05.2015 for your cargo and your tractor for operation without overloading and fines.
