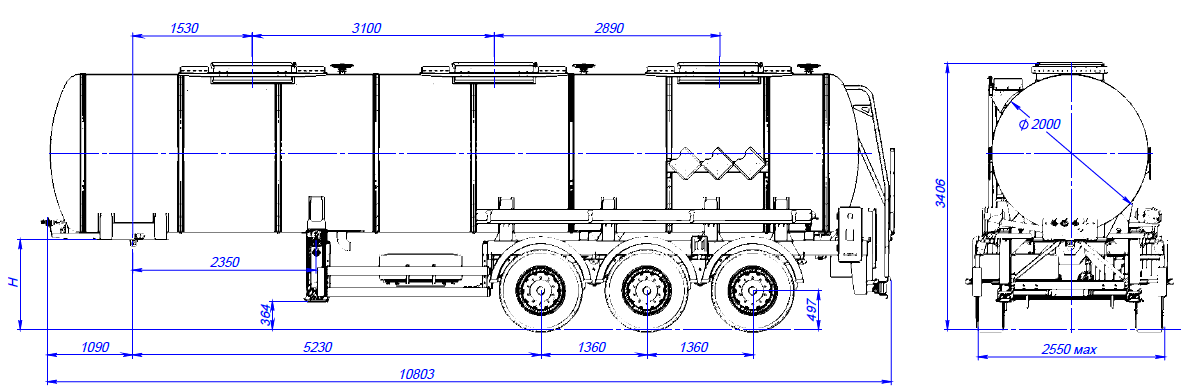

96487B fifth-wheel 1150, 1 compartment_37 chemical

  • Specifications

96487B fifth-wheel 1150, 1 compartment_37 chemical - технические характеристики
Model 96487B_37
Rated capacity, l 25000
Total length, mm 10800
Height, mm 3400
Width, mm 2550
Wheel Base, mm 5230+1360+1360
The distance between axes, mm 1360
Wheels 385/65R22,5; 6+1
Total gross weight, kg 32000
Vertical load on the fifth wheel, kg 10750
Axle load, kg 21250
Payload, kg 24700
Axle configuration of the tractor 4x2
Number of compartments 1
Curb weight, kg 7300
Axles BPW
Fifth wheel height, mm 1150
Recovery No
Material Stainless steel
Wash Yes
Pressure from 2 atm Yes
Access box position On the rear side
Pump No
Thermal insulation Yes
Steam heating system No
Discharge assembly On the rear side

Engineer consultation

Our engineers will help you calculate the optimal load on the road according to the RF Government Regulation No. 12 dated 01.05.2015 for your cargo and your tractor for operation without overloading and fines.
