Fuel Tankers

SF3325

The fuel tankers SF3325, fuel tankers SF3340 made of low-alloy steel at the plant in Cheboksary, are mounted on the axle of truck or German undercarriage BPW.

The fuel tankers are sold in the cities of the republic and nearby regions, including St. Petersburg and Moscow. The fuel tanker has a useful volume of 25 m3 and is divided into 3 or 5 compartments. Mounted on the base of domestic cars MAZ, the trailer provides a carrying capacity of 21.5 tons.

The total weight of the tanker is 28.7 tons. The road tankers are manufactured and sold according to customer's requirements. The machinery can be supplied with additional equipment and systems.

Order Lease

Technologies

SESPEL AXLES

Electronic security sealing system

Rotary pump НК-600

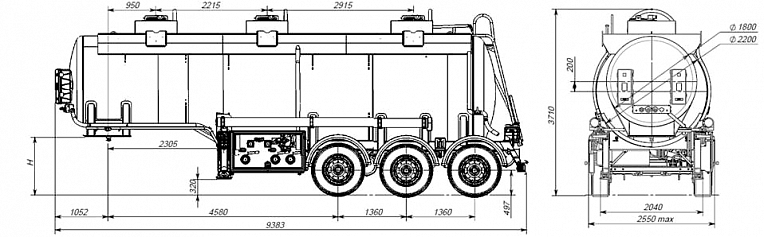

Specifications

Rated capacity, l	25000
Compartments	3; (7,7 м3/7,7 м3 /9,6 м3)
Total length, mm	9500
Height, mm	4000
Width, mm	2550
Wheel Base, mm	4580 +1360 + 1360
The distance between axes, mm	1360
Wheels	385/65R22,5; 6+1
Total gross weight, kg	28700
Vertical load on the fifth wheel, kg	10045
Axle load, kg	18655
Payload, kg	21500
Curb weight, kg	7200
More Vessel Chassis Equipment Unloading The self-supporting Tank made of low-alloy steel is intended for carriage, temporary storage and pumping of light oil products with the density up to 860 kg/m3, and can be transported by Russian or foreign trucks with 4х2 ( 6х4) wheel arrangement; The Tank nominal volume (up to calibration marks in compartments, without metering compensatory volume) – 25 000 litres; number of Manholes - 3, number of isolated compartments - 3, compartment №1 volume – 7700 litres, compartment №2 volume – 7700 litres, compartment №3 volume – 9600 litres, The separate gravity discharge to the left or to the right side through Jouka Ball Vallve DN-80 (3”); Top loading through Livny Manlids; Material: steel alloy 09Г2С, walls and bottoms thickness - minimum 4,00 mm; shell thickness - minimum 4 mm, bottoms thickness (2 pcs) - minimum 4 mm, baffles (2 pcs) and bulkheads(4 pcs) thickness- minimum 4 mm, Transportation of highly flammable liquids Class 3 (gasoline, diesel fuel, kerosene oil); design pressure – 0,5 бар, test pressure – 0,5 бар, working pressure – 0,0 бар Running gear - Brake system 3 (three) axle air suspension BPW (Germany), unlimited mileage warranty for 3 (three) years (the warranty is provided by BPW); Maximum load on axle – 9.0 tons Steel chassis; Drum brakes; Level control valve; Double circuit brake system WABCO equipped with ТEBS system (2S/2M) with Roll Stability Support function. Automatic regulation of brake force and automatic brake shoes gap control; Pneumatic hand brake – of two axles; One test jack for each wheel – to measure and check pressure in braking system. The pressure in the braking system is automatically adjusted according to the load; Wheels and Tyres Solid wheels, tubeless tires (6 wheels + 1 spare) - 7 pcs; Tyres 385/65 R22,5 - 7 pcs; Steel wheel disks 11,75x22,5 - 7 pcs; Individual PVC fenders with brackets and mudguard - 6 pcs; Tank equipment Kingpin 2'' in diameter of international type of KZ brand with steel support plate; BPW support legs with double speed,25 (50) tons load capacity, hand-driven; It is structurally possible to seal each compartment manholes; Manholes safety fencing all along the tank; Ecological anti spill and draining equipment, 2 outlets at the rear side of the tank – draining system passing through it; Aluminium manlid DN500 - each compartment, manhole diameter - 300 mm., fixation - bolts around manlid; Foot Valve 4” Livny with pneumatic control in each compartment; Foot valves control module with compartment numbers and switch positions marking: open/closed for each compartment – 1 pce; Vent Valves with flame arrester in each compartment manlid; Composite discharge hoses L = 4,0м., DN-80 (3&quot;) - 2 pcs.; PVC hoses carriers - 2 pcs.; Quick connectors Сamloсk 3” on discharge hoses; Rear protection according to GOST R 50913-96 requirements; Other equipment Fire extinguisher of 6 kg capacity with plastic box - 2 pcs.; Wheel blocks -2 pcs.; Box for nuetralizing agent (sand) -1 pce; Spare wheel carrier (mounting bracket); 15 meters grounding cable with reel and clip; 2 (two) copper earthing rods; The discharging equipment is situated in the closed access box on the vessel left side between supporting legs and carriage front axle; Aluminium pipelines 4” for bottom loading and unloading - 3pcs; Ball Valves with manual control DN80 (3”) Civacon on discharge pipelines - 3pcs (in case of top loading); Ground cable (reel with cable); Air preparation unit for foot valves drive ; Fuel type indicator on discharge pipelines – 3 pcs; Discharge opportunities: discharging under gravity;

Engineer consultation

Our engineers will help you calculate the optimal load on the road according to the RF Government Regulation No. 12 dated 01.05.2015 for your cargo and your tractor for operation without overloading and fines.

Select one of the standard configurations.

Or contact our specialists and choose your own configuration.

SF3325.3S.101, fifth-wheel 1250, 3 compartments_25 m3 The Tank semi-trailer SF3325.3S_101 is made of low-alloy steel. The total capacity is 25 m3 with division into 3 compartments with volumes 8,3 m3/ 11,1 m3/ 10,6 m3. Three-axle single-wheeled air suspension manufactured by BPW (Germany), the warranty is provided by BPW for up to 3 years. The total mass of the semi-trailer is 25000 kg. Double circuit brake system WABCO, equipped with TEBS (2S / 2M) with Roll Stability Support function. The semitrailer is equipped with PVC fenders. The fifth wheel height is 1150 -1250 mm.	Order SF3325.3S.101, fifth-wheel 1250, 3 compartments_25 m3 The Fuel Tanker SF3325.3S_101 is a tank semi-trailer intended for transportation and temporary storage of gasoline and light oil products (gasoline, kerosene, diesel fuel, etc.). The tank structure is made of low-alloy steel. The volume of the tank is 25 m3. The fuel tanker is divided into 3 compartments, with volumes 8,3 m3/ 11,1 m3/ 10,6 m3. The Fuel Tanker SF3325.3S_101 is designed for operation with MAZ, KAMAZ trucks.It is transported by Russian or foreign tractor with 4х2 (6х4) wheel arrangement. The running gear of the semi-trailer is a three-axle single-wheeled air or leaf suspension (according to customer preferences) manufactured by BPW (Germany), the warranty is provided by BPW for up to 3 years. Double circuit brake system WABCO, equipped with TEBS (2S / 2M) with Roll Stability Support function. The semi-trailer SF3325.3S_101 is equipped with PVC fenders. The tank undergoes special treatment with zinc-enriched pre-coating and painting in one color with high-quality two-pack paint Tikkurilla. The fifth-wheel height is from 1150 to 1250 mm. Additionally there can be installed a variety of equipment, such as a pump, a meter, a fuel delivery unit, a vapor recovery system, a bottom loading system, etc.
SF3325.4S, fifth-wheel 1250, 4 compartments_25 m3 The Tank semi-trailer SF3325.4S_01 is made of low-alloy steel. The total capacity is 25 m3 with division into 4 compartments with volumes 8,2 m3/ 7,5 m3/ 4,6 m3/ 4,7 m3. Three-axle single-wheeled air suspension manufactured by BPW (Germany), the warranty is provided by BPW for up to 3 years. The total mass of the semi-trailer is 28650 kg. Double circuit brake system WABCO, equipped with TEBS (2S / 2M) with Roll Stability Support function. The semitrailer is equipped with PVC fenders. The fifth wheel height is from 1150 to 1250 mm.	Order SF3325.4S, fifth-wheel 1250, 4 compartments_25 m3 The Fuel Tanker SF3325.4S_01 is a tank semi-trailer intended for transportation and temporary storage of gasoline and light oil products (gasoline, kerosene, diesel fuel, etc.). The tank structure is made of low-alloy steel. The volume of the tank is 25 m3. The fuel tanker is divided into 4 compartments, with volumes 8,2 m3/ 7,5 m3/ 4,6 m3/ 4,7 m3. The Fuel Tanker SF3325.4S_01 is designed for operation with MAZ trucks.It is transported by Russian or foreign tractor with 4х2 (6х4) wheel arrangement. The running gear of the semi-trailer is a three-axle single-wheeled air or leaf suspension (according to customer preferences) manufactured by BPW (Germany), the warranty is provided by BPW for up to 3 years. Double circuit brake system WABCO, equipped with TEBS (2S / 2M) with Roll Stability Support function. The semi-trailer SF3325.4S_01 is equipped with PVC fenders. The tank undergoes special treatment with zinc-enriched pre-coating and painting in one color with high-quality two-pack paint Tikkurilla. The fifth-wheel height is from 1150 to 1250 mm. Additionally there can be installed a variety of equipment, such as a pump, a meter, a fuel delivery unit, a vapor recovery system, a bottom loading system, etc.
SF3325.3S, fifth-wheel 1250, 3 compartments_25 m3 The Tank semi-trailer SF3325.3S_01 is made of low-alloy steel. The total capacity is 25 m3 with division into 3 compartments with volumes 8,2 m3/ 7,5 m3/ 9,3 m3. Three-axle single-wheeled air suspension manufactured by BPW (Germany), the warranty is provided by BPW for up to 3 years. The total mass of the semi-trailer is 28550 kg. Double circuit brake system WABCO, equipped with TEBS (2S / 2M) with Roll Stability Support function. The semitrailer is equipped with PVC fenders. The fifth wheel height is 1150 -1250 mm.	Order SF3325.3S, fifth-wheel 1250, 3 compartments_25 m3 The Fuel Tanker SF3325.3S_01 is a tank semi-trailer intended for transportation and temporary storage of gasoline and light oil products (gasoline, kerosene, diesel fuel, etc.). The tank structure is made of low-alloy steel. The volume of the tank is 25 m3. The fuel tanker is divided into 3 compartments, with volumes 8,2 m3/ 7,5 m3/ 9,3 m3. The Fuel Tanker SF3325.3S_01 is designed for operation with MAZ trucks.It is transported by Russian or foreign tractor with 4х2 (6х4) wheel arrangement. The running gear of the semi-trailer is a three-axle single-wheeled air or leaf suspension (according to customer preferences) manufactured by BPW (Germany), the warranty is provided by BPW for up to 3 years. Double circuit brake system WABCO, equipped with TEBS (2S / 2M) with Roll Stability Support function. The semi-trailer SF3325.3S_01 is equipped with PVC fenders. The tank undergoes special treatment with zinc-enriched pre-coating and painting in one color with high-quality two-pack paint Tikkurilla. The fifth-wheel height is from 1150 to 1250 mm. Additionally there can be installed a variety of equipment, such as a pump, a meter, a fuel delivery unit, a vapor recovery system, a bottom loading system, etc.

If you have an individual project, please, fill out the data input form and send it to us for calculation.

Download the questionnaire

Наличие на складах

Склад (Склад)
in stock: not in stock

SF3325
