Dump Trucks DB3U34, 34m3

  • Specifications

Dump Trucks DB3U34, 34m3 - технические характеристики

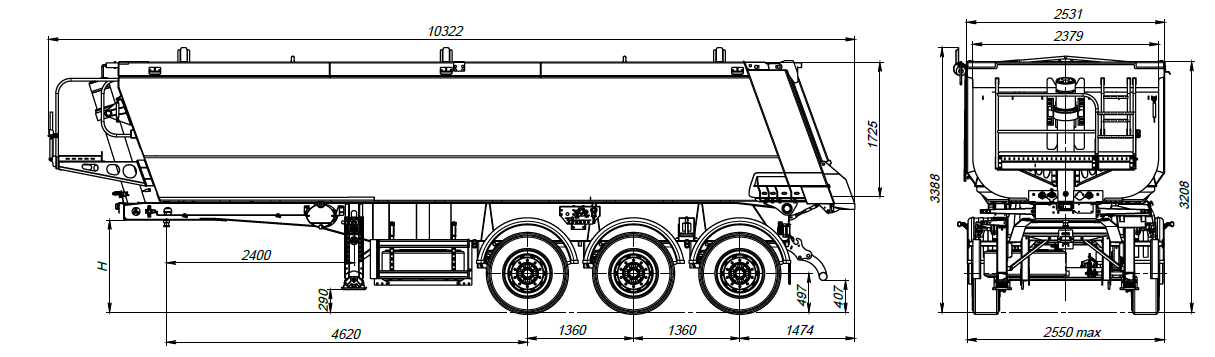

Model DB3U34_1S_01, 34 м3, ССУ 1150
Rated capacity, l 34
Total length, mm 10350
Height, mm 4000
Width, mm 2550
Wheel Base, mm 4620+1360+1360
The distance between axes, mm 1360
Wheels 385/65R22,5; 6+1
Total gross weight, kg 39000
Vertical load on the fifth wheel, kg 12000
Axle load, kg 27000
Payload, kg 30850
Axle configuration of the tractor 6x4
Number of compartments 1
Curb weight, kg 8150
Axles Sespel
Fifth wheel height, mm 1150
Material Steel
Discharge assembly On the rear side
More

Engineer consultation

Our engineers will help you calculate the optimal load on the road according to the RF Government Regulation No. 12 dated 01.05.2015 for your cargo and your tractor for operation without overloading and fines.
